Shape the future of your industrial automation.
Our linear actuators offer unmatched thrust, long life, and plug‑and‑play connectivity.
Servo Lifting Column
24-48VDC
220V-380VAC
Precision in Every Lift
The LCS series integrates a high-torque servo motor, absolute multi-turn encoder, and a maintenance-free spindle drive. Optimized for dynamic positioning with minimal backlash, it meets the rigorous demands of automated factories.
Maximum Thrust
2000 N
Stroke Length
50 – 3500 mm
Max Speed
0 – 400 mm/s
Protection Class
IPX2
Explore the Full Range
From compact to heavy-duty — find the perfect lifting column for your application.

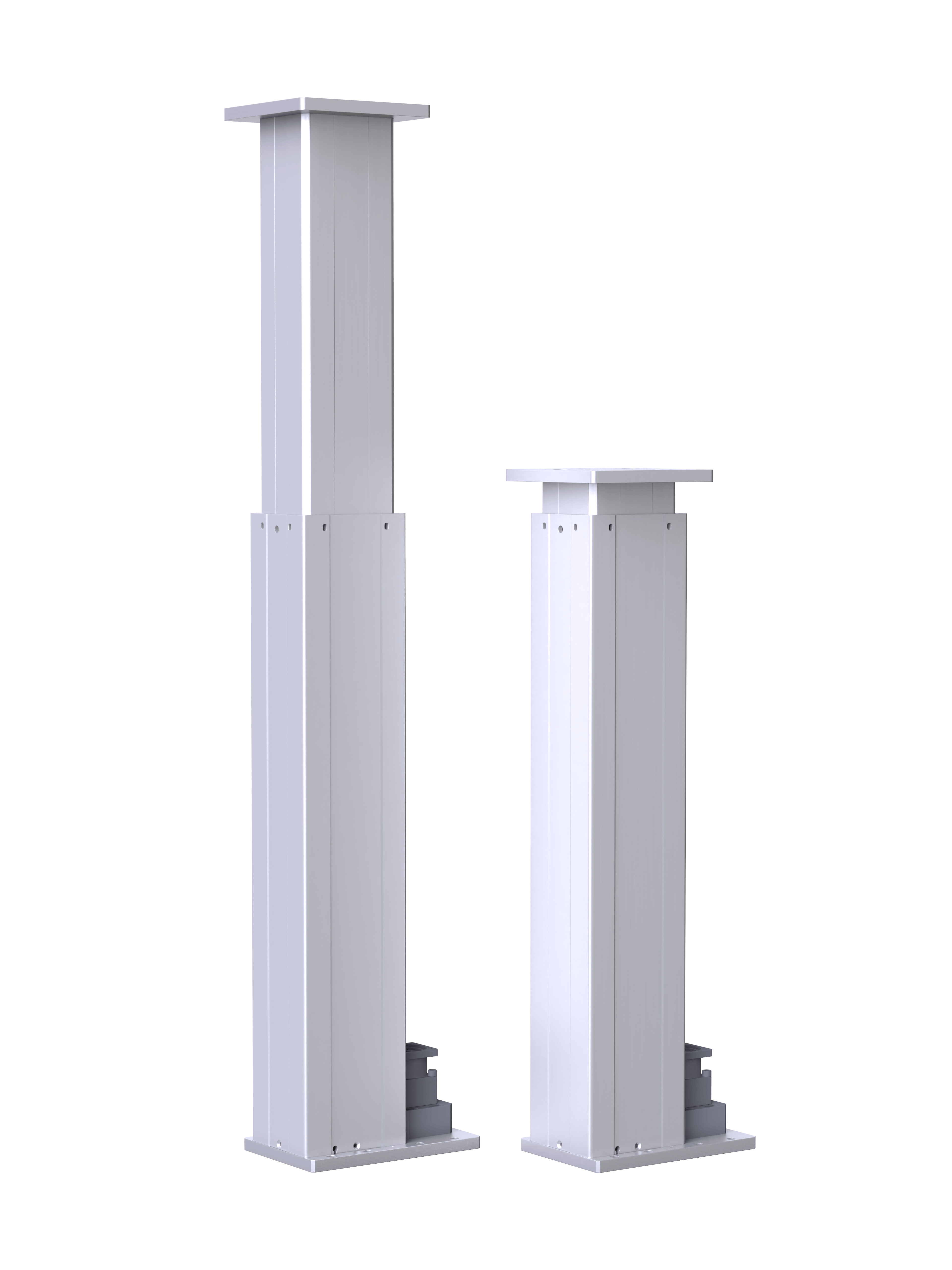

2-Stage
2-Stage

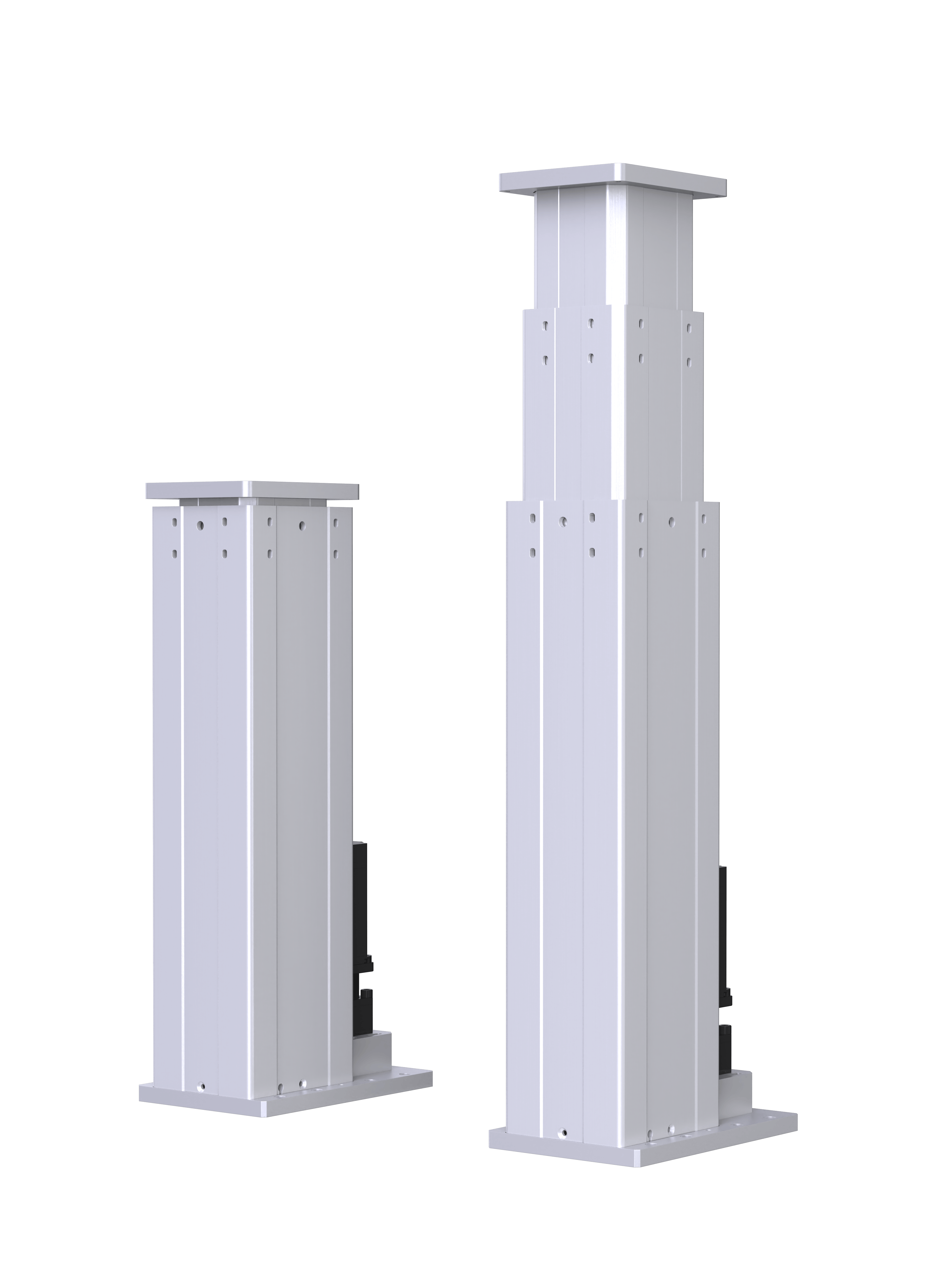

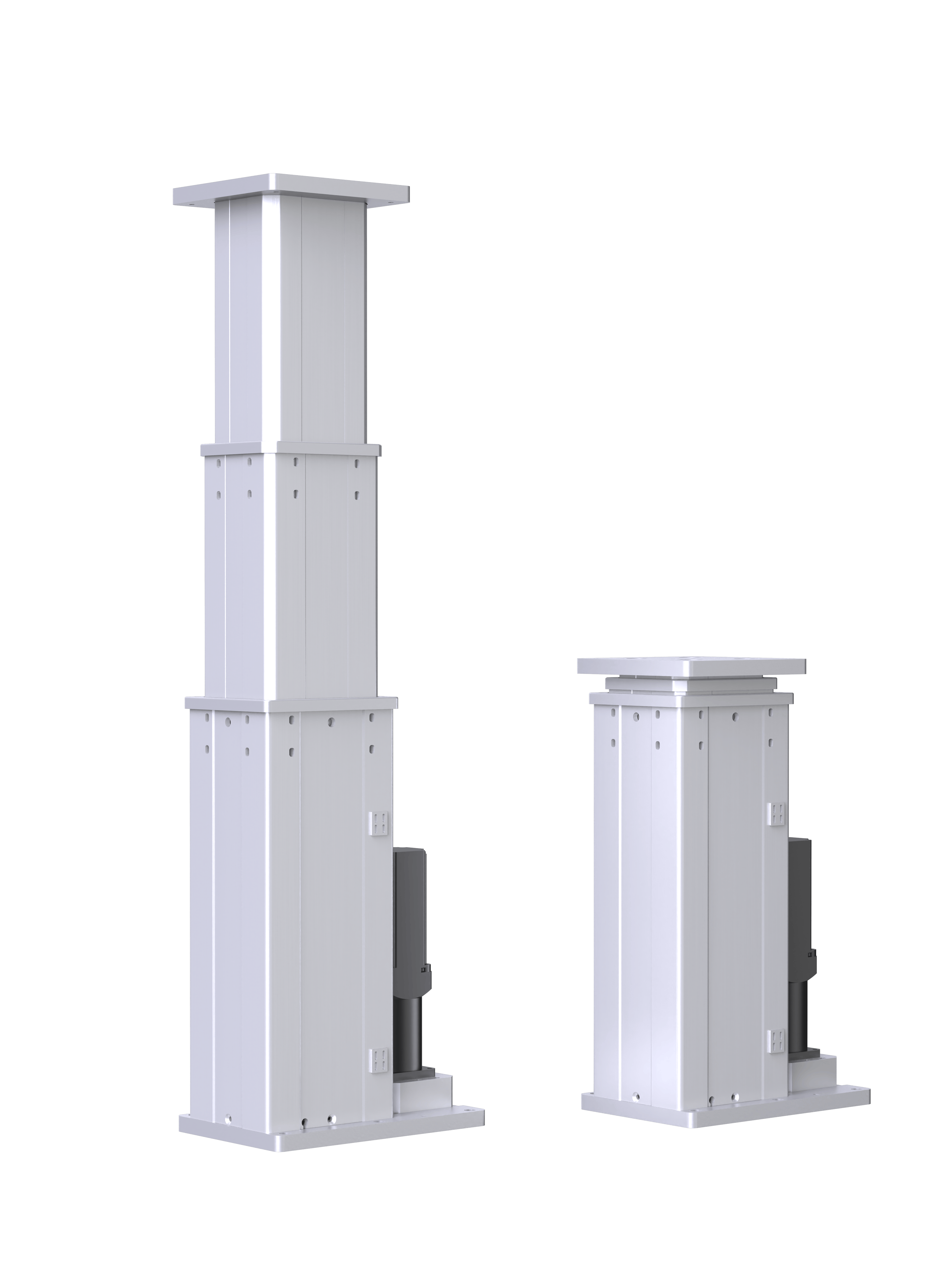

3-Stage
3-Stage
3-Stage
4-Stage
Product Comparison
Side-by-side technical comparison across 6 models with 21 key parameters.
LCS Series — Full Specification Matrix
6 Models · 21 Parameters| Parameter | LCS179-2 2-Stage | LCS201-2 2-Stage | LCS104-3 3-Stage | LCS179-3 3-Stage | LCS201-3 3-Stage | LCS201-4 4-Stage |
|---|---|---|---|---|---|---|
| Rated Voltage (V) | 24-48VDC, 220V-380VAC |
24-48VDC, 220V-380VAC |
24-48VDC, 220V-380VAC |
24-48VDC, 220V-380VAC |
24-48VDC, 220V-380VAC |
24-48VDC, 220V-380VAC |
| Number Of Lifting Columns | 2-Stage | 2-Stage | 3-Stage | 3-Stage | 3-Stage | 4-Stage |
| Dimension Of Lifting Column (mm) | 179×149 / 165×135 | 201×171 / 179×149 | 104×104 / 96.4×96.4 / 88.4×88.4 | 179×149 / 165×135 / 151×121 | 201×171 / 179×149 / 165×135 | 201×171 / 179×149 / 165×135 / 151×121 |
| Travel Range (mm) | 50-1,000 | 50-1,000 | 50-1,000 | 50-2,000 | 50-2,000 | 50-3,500 |
| Maximum Thrust (N) | 2,000 | 2,000 | 500 | 2,000 | 2,000 | 2,000 |
| Maximum Tensile Force (N) | 2,000 | 2,000 | 500 | 2,000 | 2,000 | 2,000 |
| Static Bending Moment (N.m) | 2,000 | 2,000 | 50 | 2,000 | 2,000 | 2,000 |
| Dynamic Bending Moment (N.m) | 1,000 | 1,000 | 50 | 1,000 | 1,000 | 1,000 |
| Minimum Installation Size (mm) | S+200 | S+200 | S/2+210 | S/2+210 | S/2+210 | S/3+220 |
| Maximum No-load Speed (mm/s) | 260 | 260 | 400 | 260 | 260 | 260 |
| Duty Cycle (%) | 100 | 100 | 100 | 100 | 100 | 100 |
| Noise Level (db) | ≤75 | ≤75 | ≤60 | ≤75 | ≤75 | ≤75 |
| Protection Level | IPX2 | IPX2 | IPX2 | IPX2 | IPX2 | IPX2 |
| Repetitive Positioning Accuracy (mm) | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 |
| Color | Black/Silver Grey (Aluminum Natural) | |||||
| Working Temperature Range (°C) | 5-40 | |||||
| Servo Motor Brand | Inovance, PrimoPal, Kinco | |||||
| Origin Switch | Photoelectric (Omron EE-Sx671-WR NPN) | |||||
| Communication Protocol | EtherCAT, Modbus RTU, CANopen | |||||
| Limit Switch | External/not required | |||||
| Other | Customizable installation board | |||||
Engineered for Industry
Discover the core strengths of our LCS Series, designed to meet the toughest industrial demands.
01
Flexible Stroke & Stages
Offers travel ranges from 50mm to 3500mm with 2-stage, 3-stage, and 4-stage options, providing unparalleled adaptability for diverse applications.
02
High Load Capacity
Supports maximum thrust of 2000N and static bending moments up to 2000N.m, ensuring robust performance in heavy-duty industrial environments.
03
Seamless Integration
Supports major industrial communication protocols including EtherCAT, Modbus RTU, and CANopen, ensuring compatibility with a wide range of control systems.
04
Customizable Design
Offers flexible customization for installation board dimensions, color, and switch configurations to perfectly fit your specific project requirements.
Key Applications
From automotive assembly to automated guided vehicles — the LCS Series adapts to your toughest challenges.
Robots

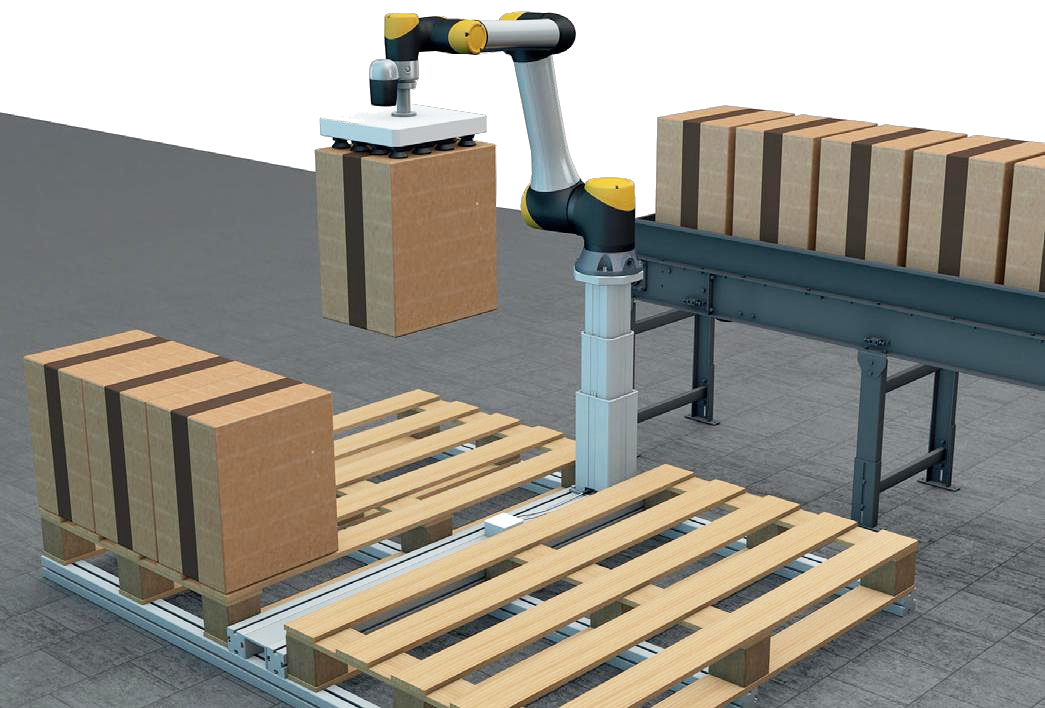

Palletizing Robots
The lift column automatically adjusts to pallet height, extending robot reach and ensuring optimal pick-and-place performance.
Cutting

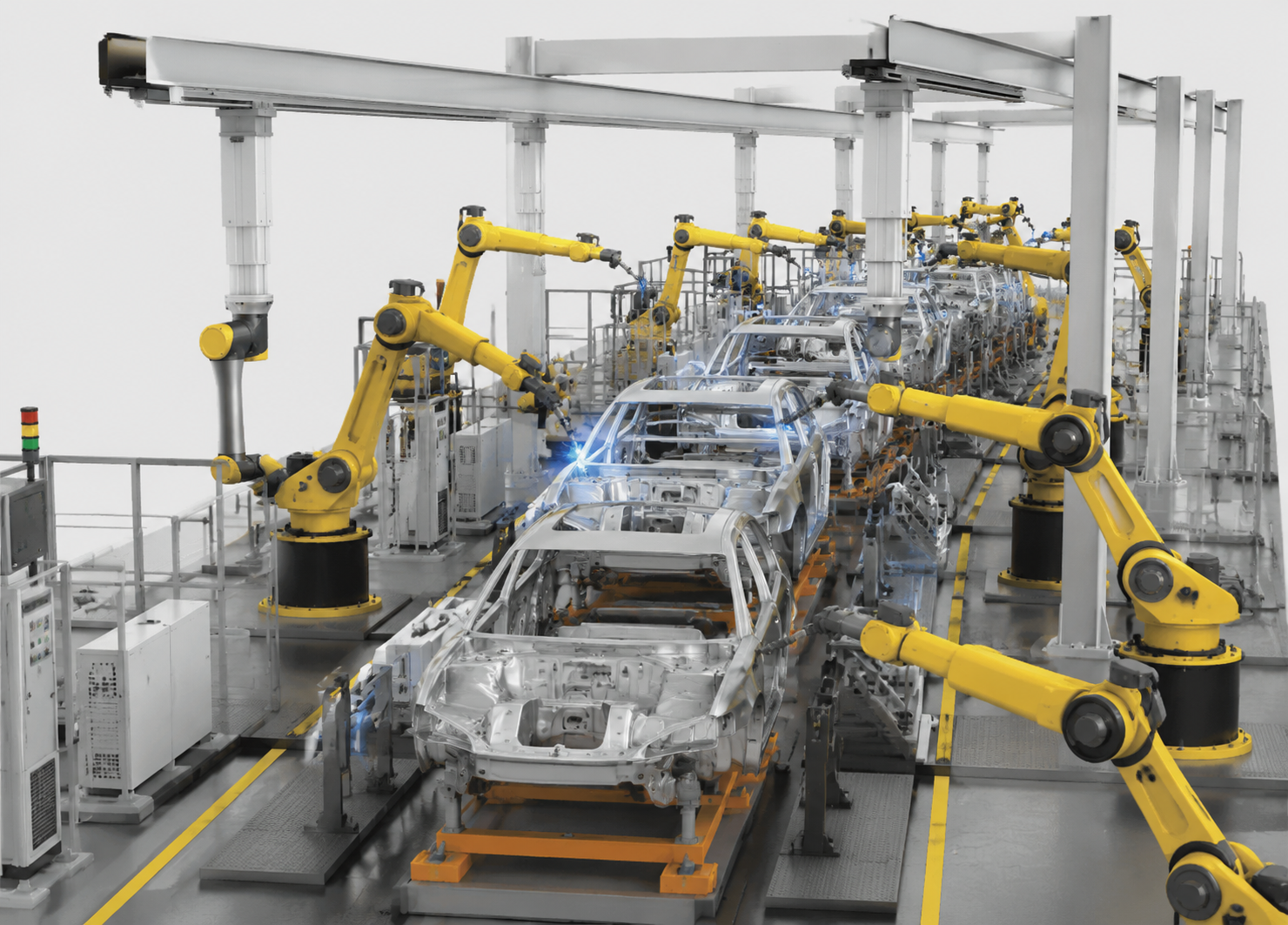

Welding & Cutting
Adaptive height control enables optimal welding and cutting performance across various fixtures, workpieces, and process paths.
Inspection

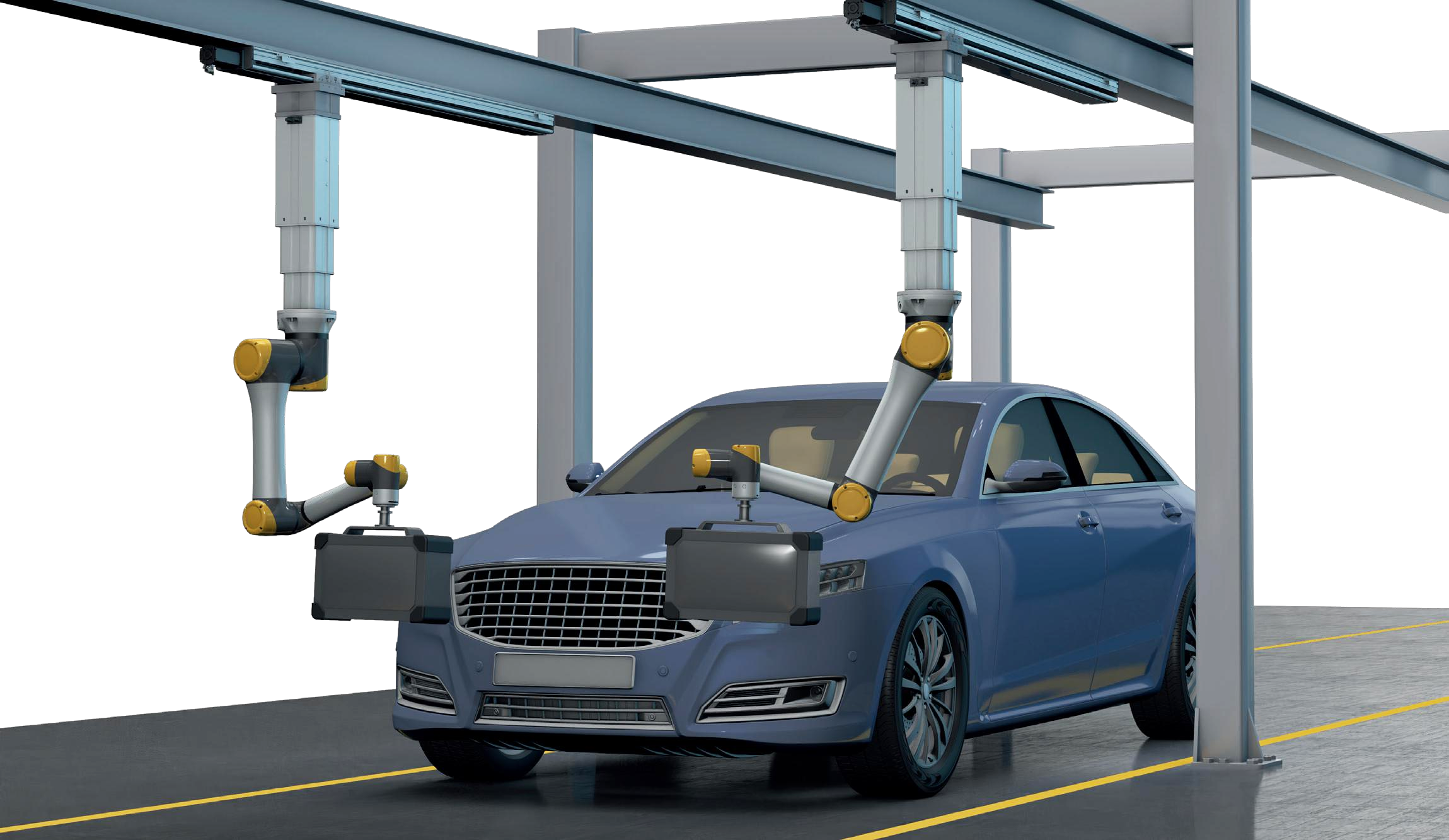

Assembly & Inspection
Integrated with vision systems for adaptive positioning, delivering higher accuracy and efficiency in assembly and inspection tasks.
Technical FAQ
Quick answers about integration, load capacity, and environmental compliance.
The LCS Series supports EtherCAT, Modbus RTU, and CANopen, providing seamless integration with a wide variety of industrial automation systems.
The LCS Series offers a maximum travel range of up to 3,500mm and a maximum thrust capacity of 2,000N, with 2-stage, 3-stage, and 4-stage options available.
Yes, the minimum installation size is flexible (e.g., S+200, S/2+210). We also offer customizable installation boards to meet specific dimensional requirements.
The LCS Series is designed for standard industrial environments with an operating temperature range of 5°C to 40°C.
The LCS Series uses a photoelectric origin switch (Omron EE-Sx671-WR NPN). Built-in, external, or non-configured options are available upon request.
Still have questions?
Our application engineers are ready to assist with custom integrations and technical specifications.
Contact Support
